730-1200kW 10500V Open Dongkang Cummins Engine Diesel Generator in Quickly Start
PT fuel injection system
Start quickly and reliably
High-performance shock absorption
Isticmaalka shidaalka oo hooseeya
- Standard
- Performance
HEERKA
- TS EN ISO 8528 koronto-dhaliyaha AC oo ay wado matoorka gubashada gudaha
- IEC 60034-1 Shuruudaha farsamada aasaasiga ah ee mashiinnada korantada ee wareega
- YD/T 502: communication diesel generator set
- GB/T 20136-2006: Habka tijaabada guud ee xarunta tamarta gubashada gudaha
Faa'iidada
- PT fuel injection system constitutes EFC electronic governor, realizes remote operation control, and can be put into full load at one time according to rated power.
- Start quickly and reliably at low temperatures, reduce exhaust gas emissions, and make the emissions meet the national standards.
- Adopt advanced technology to optimize the combustion process, reduce fuel consumption and higher reliability.
- Nidaamka nuugista shoogga ee waxqabadka sare leh iyo saldhig adag, gariir hooseeya.
- Low fuel consumption, low failure rate, lower cost, high economy and safety.
- Standardized design, comprehensive and intelligent products, strong versatility of parts and components, convenient installation and easy maintenance.
BANDHIGGOODA
dhimaya | Unit | Performance | ||
Hoos u dhaca soo noqnoqda | % | ≤3 | ||
Xadka soo noqnoqda ee gobolka deggan | % | ≤0.5 | ||
Xaddiga dejinta soo noqnoqda qaraabada | % | ≥3.5 | ||
Dejinta soo noqnoqoshada qaraabada ah ee kor u kaca | % | ≥2.5 | ||
leexashada soo noqnoqda ku meel gaadhka ah | 100% awoodda dhimista degdega ah | % | ≤+10 | |
Awood degdeg ah | ≤-7 | |||
Waqtiga soo kabashada soo noqnoqda | s | ≤3 | ||
Kooxda dulqaadka soo noqnoqda qaraabada | % | 2 | ||
weecasho danab joogto ah | % | ≤ ± 1 | ||
Isku dheelitir la'aanta korantada | % | 1 | ||
weecasho danab ku meel gaadh ah | 100% awoodda dhimista degdega ah | % | ≤+20 | |
Awood degdeg ah | ≤-15 | |||
Waqtiga soo kabashada korantada | s | ≤4 | ||
Hababka korantada | % | 0.3 | ||
Qiyaasta dejinta danab qaraabo ah | % | ≤ ± 5 | ||
Heerka dejinta korantada ee isbeddelka | %/s | 0.2 ~ 1 | ||
Qodobka iswada leh ee telefoonka | THF | % | <2 | |
Arrimaha saamaynta telifoonka | TIF | / | <50 | |
MAWDUUCA
FARSAMADA FURAHA
Awoodda ugu weyn (PRP) waa awooda ugu badan ee unuggu si joogto ah ugu shaqayn karo culays isbedbeddela leh oo hoos yimaada jawiga caadiga ah (cadaadiska jawiga, qoyaanka qaraabada, heerkulka deegaanka) xaaladaha, oo u oggolaanaya 10% hawlgal xad dhaaf ah 1 saac 12 saacadood kasta.
- Dhererka: ≤1000m (marka> 1000m, sixitaan koronto ayaa loo baahan yahay)
- Heerkulka deegaanka: 40 ° C (marka> 40 ° C, hagaajinta korontada ayaa loo baahan yahay)
- Qoyaanka qaraabada: ≤60%
- Marka xaaladaha shaqada goobta ee set naaftada dhalisa ay buuxin waayaan shuruudaha kor ku xusan, awooda wax soo saarka ee mishiinka waa in la saxo, oo ugu danbayn la saxo isku xidhka, fadlan nala tasho.

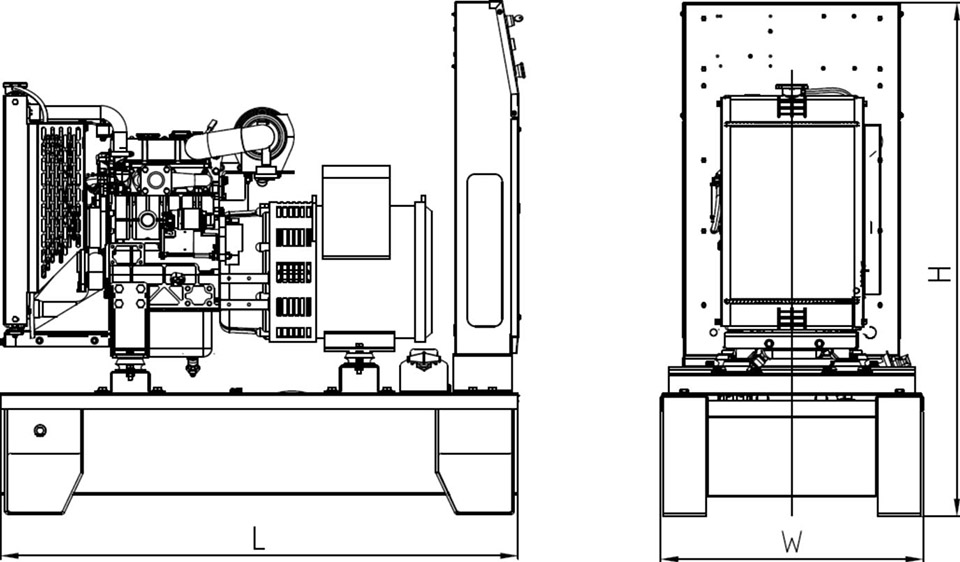

| Moodeelka Genset | Genset Prime Power (kW) | Genset Standby Power (kW) | Awoodda Awooda | danab qiimeeyay | Frequency | Cabirka (L×W×H) (mm) | Culayska (kg) | Moodel Moodeel | Number Suuqa | Dheesha × Stroke (mm) | Barokaca (L) | Isticmaalka Shidaalka (g/kW) | Speed | System qaboojinta | Habka Bilaabidda |
| Qaabka Furan(10500V) | |||||||||||||||
| Chongkang Cummins Generator | |||||||||||||||
| ATYOH-C730C | 730 | 800 | 0.8 | 400V | 50HZ | 5160L 1770W 2340H | 10500 | KTA38-G2A | 12 | 159*159 | 38.000 | 1500 | Qaboojinta biyaha | Bilawga Korontada | |
| ATYOH-C800C | 800 | 880 | 0.8 | 400V | 50HZ | 5160L 1770W 2400H | 10500 | KTA38-G5 | 12 | 159*159 | 38.000 | 1500 | Qaboojinta biyaha | Bilawga Korontada | |
| ATYOH-C1000C | 1000 | 1100 | 0.8 | 400V | 50HZ | 5760L 2010W 2460H | 12100 | KTA50-G3 | 16 | 159*159 | 50.000 | 1500 | Qaboojinta biyaha | Bilawga Korontada | |
| ATYOH-C1000CG | 1000 | 1100 | 0.8 | 400V | 50HZ | 5760L 2200W 2366H | 10800 | QSK38-G5 | 12 | 159*159 | 37.700 | 1500 | Qaboojinta biyaha | Bilawga Korontada | |
| ATYOH-C1100C | 1100 | 1200 | 0.8 | 400V | 50HZ | 6250L 2010W 2440H | 13200 | KTA50-G8 | 16 | 159*159 | 50.300 | 1500 | Qaboojinta biyaha | Bilawga Korontada | |
| ATYOH-C1200C | 1200 | 1320 | 0.8 | 400V | 50HZ | 6150L 2010W 2570H | 13300 | KTA50-GS8 | 16 | 159*159 | 50.000 | 1500 | Qaboojinta biyaha | Bilawga Korontada | |
